Weichai Generator Sets

The WP series covers roughly 20 to 400 kVA in generating form, with heavier blocks continuing above it. This page maps the series to their output bands, sets out where the price difference against an imported platform actually comes from, and names the three maintenance habits that decide whether a set of this class reaches ten years.

Weichai Power, based in Weifang in Shandong province, is one of the two engine makers whose blocks sit under most Chinese-built generating sets, the other being Yuchai. Its WP series covers roughly 20 to 400 kVA in generating form, and through the acquisition of Moteurs Baudouin in 2009 the group also reaches well into the megawatt band with the M series blocks sold under the Baudouin name.

For a buyer, the interesting question is not whether these engines work, they do, in very large numbers, but where the cost difference against an imported platform actually comes from, and what it costs back over ten years.

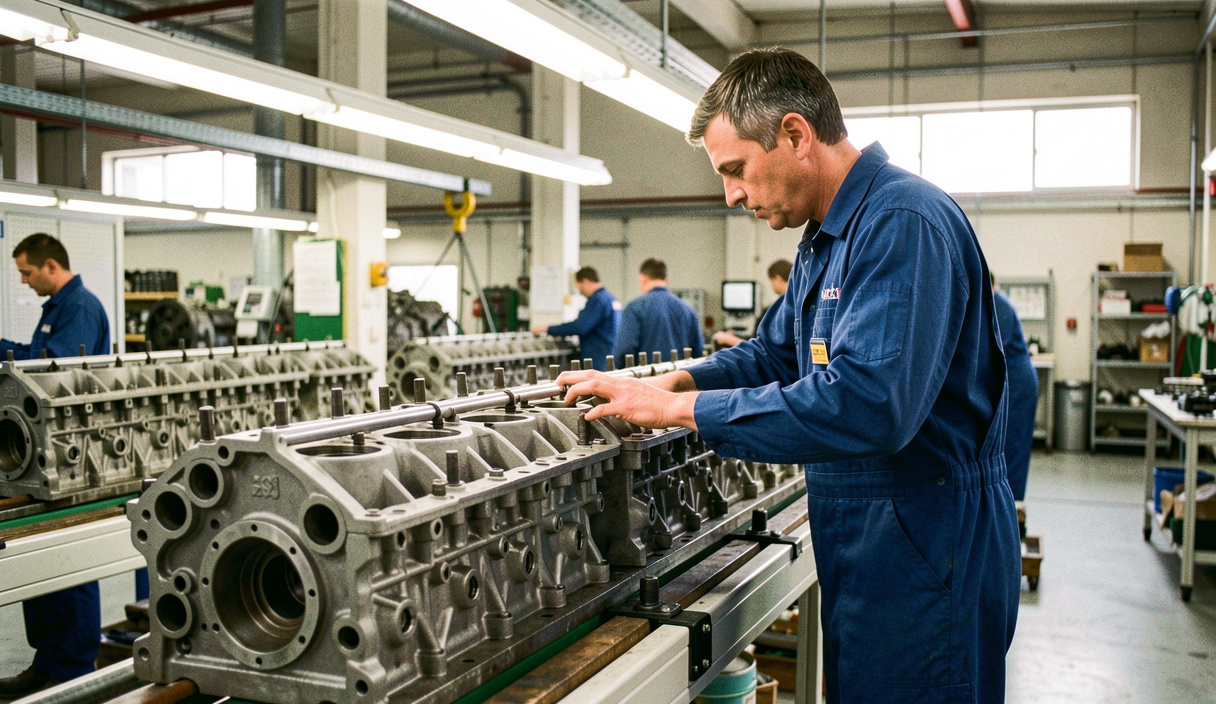

Row of six-cylinder diesel engine blocks on a moving assembly line, an operator in blue overalls fitting a cylinder head under bright overhead lighting — Volume is the cost argument. Parts logistics is the counter-argument, and it is decided by the map, not by the engine.

The WP series, from 2.3 to 13 litres

The naming is straightforward: WP followed by the displacement in litres. WP2.3 and WP3.9 cover the small end at roughly 20 to 50 kVA. WP4 and WP6 cover about 50 to 140 kVA and are the volume products of the range. WP10 reaches roughly 150 to 220 kVA, WP12 about 250 to 330 kVA, and WP13 about 300 to 400 kVA. Above that the older 6170 and 8170 heavy blocks cover roughly 450 to 900 kVA, and the Baudouin M series continues upward.

Series	Displacement	Cylinders	Typical genset output at 50 Hz
WP2.3	2.3 L	4 in line	20 to 30 kVA
WP4	4.5 L	4 in line	50 to 90 kVA
WP6	6.7 L	6 in line	90 to 140 kVA
WP10	9.7 L	6 in line	150 to 220 kVA
WP12	11.6 L	6 in line	250 to 330 kVA
WP13	12.5 L	6 in line	300 to 400 kVA
6170 and 8170	24 to 32 L	6 and 8 in line	450 to 900 kVA

Where the cost difference comes from

Three things separate the price of a WP-powered set from an imported equivalent of the same output: manufacturing volume in a lower-cost base, a simpler mechanical fuel system on many models, and a shorter supply chain to the assemblers who build the sets. None of those are quality defects. What they do change is the tolerance band the engine was designed to, and therefore the sensitivity of the machine to how it is treated.

The practical consequence is that the maintenance schedule is not optional in the way an operator might get away with on a lightly used imported set. Oil and filter service at the published interval, air filter restriction watched in dusty installations, and coolant changed rather than topped up, are the three habits that decide whether a set of this class reaches ten years cleanly. The interval logic, including the case for a higher oil grade, is set out in the oil change interval guide.

The parts question is a map question

The strongest argument for or against any engine platform on a given site is the distance to the nearest stocked filter, injector and liner set. An engine with a dealer 40 kilometres away is a better engine, in practice, than one with a dealer 900 kilometres away, whatever the two data sheets say.

Cooling, turbocharging and the fuel system

Most WP models above 50 kVA are turbocharged, and the larger ones are charge air cooled. Later models in the range use electronic fuel control to meet emission requirements in export markets, while mechanically governed versions remain common where no such requirement applies. Buyers should establish which of the two they are being quoted, because it changes both the fuel cleanliness requirement and the diagnostic method entirely.

The genset assembler chooses the alternator, the controller, the enclosure and the base tank, and those choices vary far more between suppliers than the engine does. That division of responsibility is exactly what the explainer on OEM, assembler and distributor roles sets out, and it is worth reading before a quotation is compared.

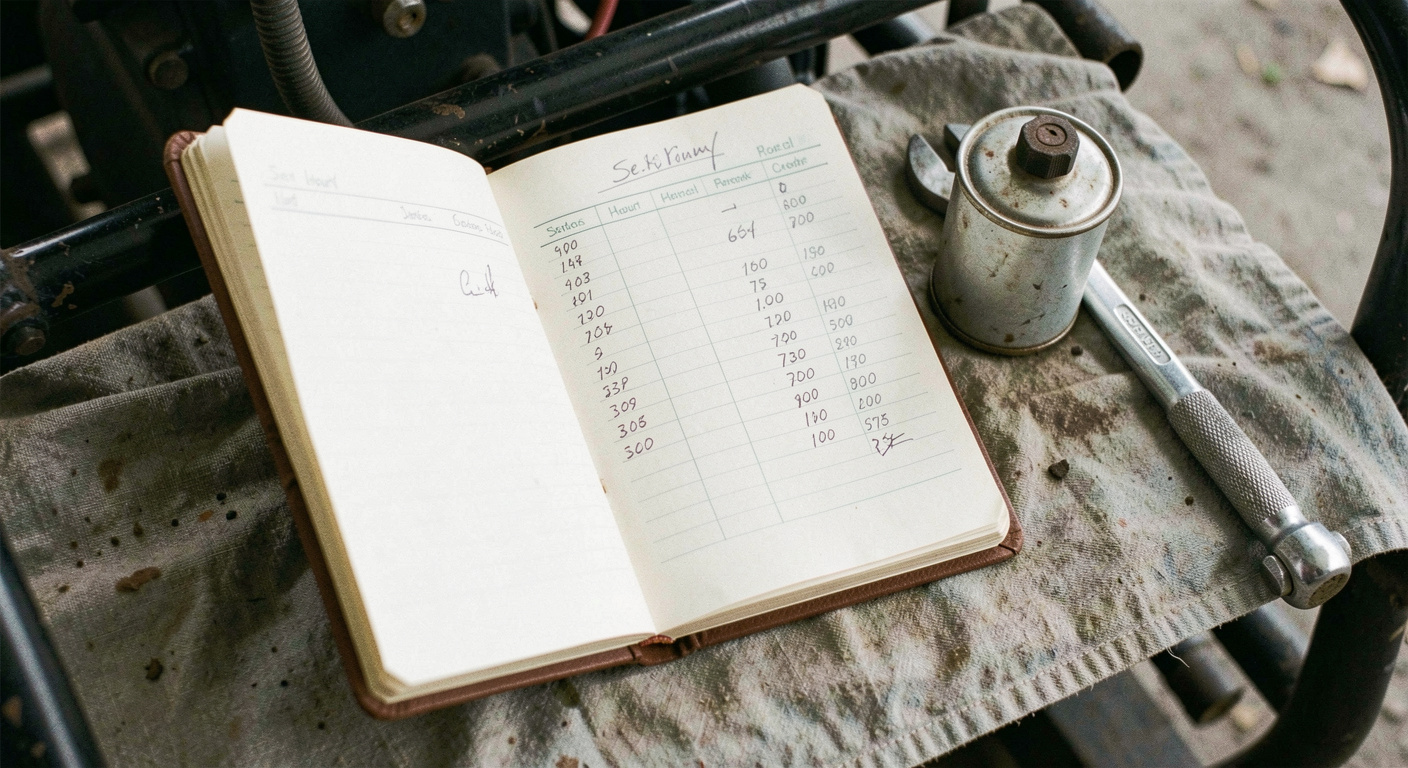

Open service logbook on the frame of a generator set with handwritten hour readings, a used oil filter and a torque wrench beside it on a rag — On a mid-range platform the logbook is the warranty. Intervals kept in writing are the difference between a ten-year set and a five-year one.

What to check before ordering

Four checks cover most of the risk. Confirm the engine model and its serial, not just the series name. Confirm whether the quoted output is a standby or a prime figure, since the gap is usually around 10 per cent. Confirm the alternator make and its insulation class. And confirm what the local service network actually stocks, in writing.

For a direct comparison at the same tier of the market, the Yuchai platform page covers the YC series across a very similar output band, and the sizing method gives the framework for deciding what output is needed in the first place.
